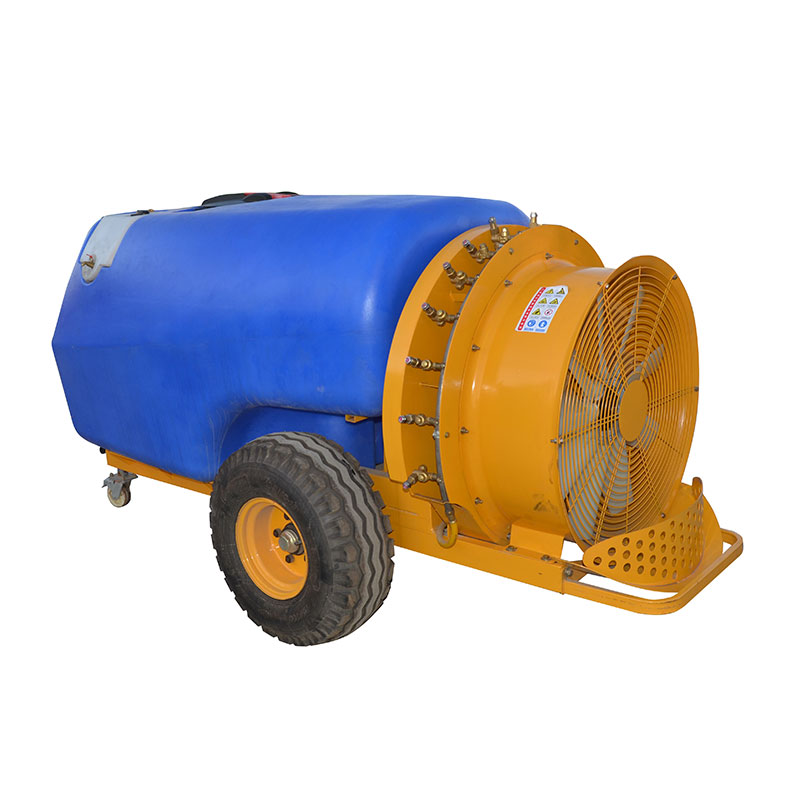

An Air Assisted Sprayer, often called an airblast sprayer, is a significant advancement over traditional sprayers. Instead of relying solely on liquid pressure to create droplets, it uses a powerful fan to generate a high-velocity airstream. This airstream acts as a carrier, forcibly projecting the spray droplets—which are created by the hydraulic nozzles—deep into the crop canopy. The air turbulence shakes the leaves and ensures the mist penetrates to the inner areas of the plants, covering both the front and back of leaves uniformly. This method solves the primary weakness of conventional spraying, which often leaves the inner canopy and undersides of leaves untreated, creating safe havens for pests and fungi. The result is a dramatic increase in application efficiency, ensuring every drop of your valuable crop protection products is used effectively to safeguard your yield.
| Model | 3WFQ-800 | 3WFQ-1000 | 3WFQ-1200 | 3WFQ-1500 | 3WFQ-2000 |
|---|---|---|---|---|---|
| Tank capacity(L) | 800 | 1000 | 1200 | 1500 | 2000 |
| Horizontal range(M) | 20 | 22 | 22 | 22 | 22 |
| Matched Power(HP) | 50 | 50 | 50 | 50 | 50 |
| Rated Flow(L/min) | 80-100 | 80-100 | 80-100 | 80-100 | 100-140 |
Our range of Air Assisted Sprayers is designed to cater to various farm sizes and tractor capabilities. The tank capacities are versatile, starting from a nimble 100-gallon model suited for smaller vineyards or narrow rows, all the way up to robust 500-gallon systems built for large-scale orchards and wide-acre coverage. The fan systems are equally powerful, with diameters ranging from 24 inches on compact models to a massive 36 inches on the high-output units, capable of moving tremendous volumes of air. The hydraulic pump systems are matched to ensure consistent pressure and droplet size across the entire boom, which can be adjusted in width from 8 to 15 feet to perfectly match your row spacing. This variety ensures that whether you have a compact fruit farm or a vast agricultural enterprise, there is a model configured to your exact requirements.
The application scenarios for this technology are specifically tailored towards permanent crops with complex canopy structures. They are the industry standard for modern orchards, including apple, pear, peach, and cherry trees, where getting inside the dense foliage is critical. They are equally indispensable in vineyards, where the airflow ensures spray reaches the fruit zone and the underside of the leaves, preventing mildew and rot. Beyond these, they are highly effective in citrus groves, nut orchards like almonds and walnuts, and even in nursery operations for taller ornamental trees and bushes. Any crop where height, density, and complete coverage are challenges is a perfect candidate for the superior performance of an air-assisted system.
